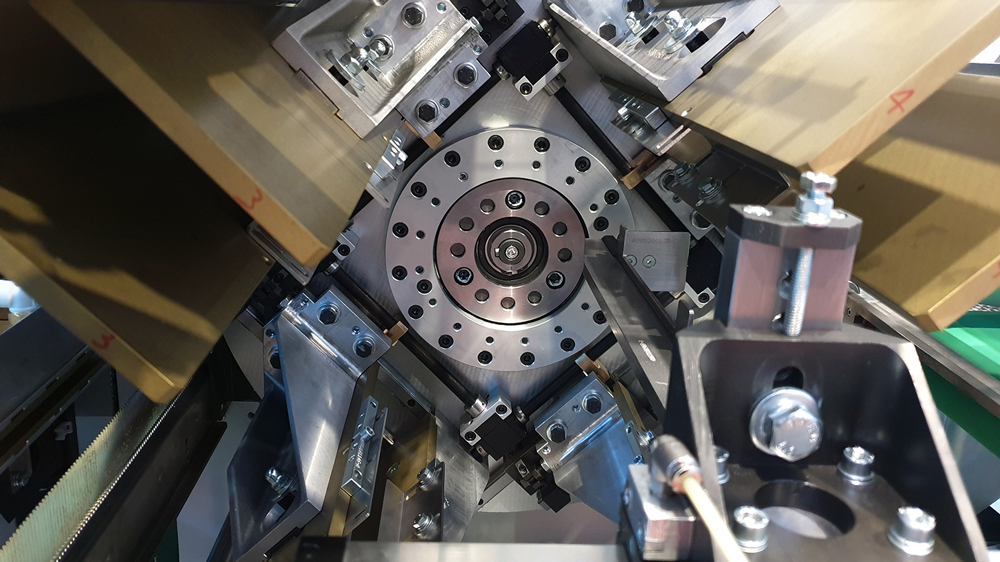

Macchina per il confezionamento
primario di tovaglioli di carta

Machine technical data
Size range of packs:
Min: A = 80 mm x B = 100 mm
Max: A = 210 mm x B = 420 mm.
Maximum height of uncompressed product (C1):
Up to 180 mm.
Standard height of the final pack:
Min C = 25 mm; Max C = 165 mm.
Change-over time
Max. 20-25 min.
Print centring
+ 2 mm.
Wrapping material gauge
Polyethylene (PE): Approx. 28-32 my**
Polypropylene (PP): Approx. 25-30 my**
Maximum reel diameter: Up to 500 mm
Maximum reel width: Up to 400 mm.
**wrapping material to be approved by CPS.
Standard folding units ranges
(H1) 15 to 19mm
(H2) 20 to 39mm
(H3) 40 to 64mm
(H4) 65 to 79mm
(H5) 80 to 99mm
(H6) 100 to 129mm
(H7) 130 to 160mm
In relation to the dimensions of the final pack.

Standard electrical supply
Main power: 380/400 Volts AC, 50/60 Hz., 3-ph. + Ground
Control circuits: 24 Volts DC
Installed power: 12 KVA
Absorbed power: 9 KVA
Air consumption: 250 NL/min
Working pressure: 5/6 Bar (a lower pressure might affect the machine performances).
Finished Bundle dimensions
Rif | Pack Dimension | Speed |
mm | p/min | |
A1 | 80 – 125 | 120 |
A2 | 126 – 165 | 110 |
A3 | 165 – 210 | 90 |
B1 | 100 – 165 | 120 |
B2 | 165 – 250 | 110 |
B3 | 250 – 420 | 100 |
C | H6 | 100 |
C | H7 | 110 |
C | H2/H3/H4/H5 | 120 |
Tolerances of the stacks from the folding machine
Length: +/- 1 mm
Width: +/- 1 mm
Height: compression must be from 15 to 40 mm.
Mechanical Speed
up to 130 cycles/min**.
Standard colour
RAL 7035 (white).
Manuals
One full set of parts, instructions, trouble shooting and manuals in English or following CE regulations, both in hard copy and CD.
Napkins

Napkins and folded products packaging

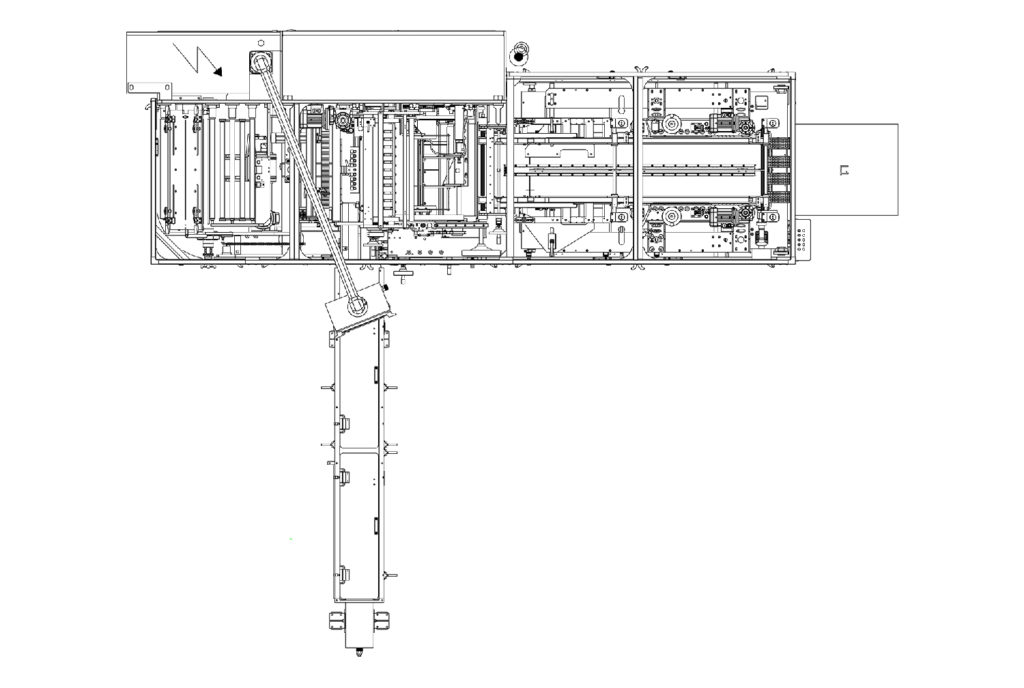

Machine layout
